Description

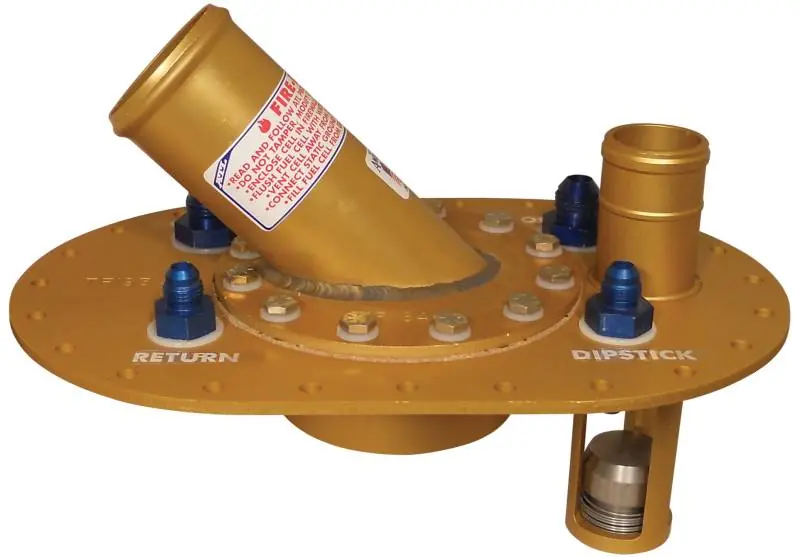

QUICK-FILL FLAPPER VALVE ASSEMBLY:
Alodined Aluminum, 2-1/4 O.D. Fill (45?), (2) #8 Outlets, (1) #6 Return, (1) #6 Dipstick, 1-1/2 O.D. Spring-Loaded Bullet Vent.
ALL FILL PLATE ASSEMBLIES INCLUDE GASKET, BOLTS, & WASHERS.
ATL Aero Tec Laboratories, based out of Ramsey, New Jersey has been making fuel system components for a wide variety of markets, including Racing, Military, and more, since 1970. For the Racing industry, ATL Aero Tec Laboratories offer a full range of fuel cells/tanks, bladders, cans, filler necks, gaskets, foams, and more
Product Description:
- Fuel Cell Filler Plate
- NASCAR Quick-Fill
- 6″ x 10″ Oval
- 45 Degree 2-1/4″ O.D. Fill Neck
- 12-Bolt Flange
- 4-3/4 Bolt Pattern
- 1-1/2″ O.D. Bullet Vent Valve
- (2) 8 AN Outlet
- (1) 6 AN Return
- (1) 6 AN Dipstick
- Alodined Aluminum
- Gaskets
- Hardware
- Sold Individually
