Description

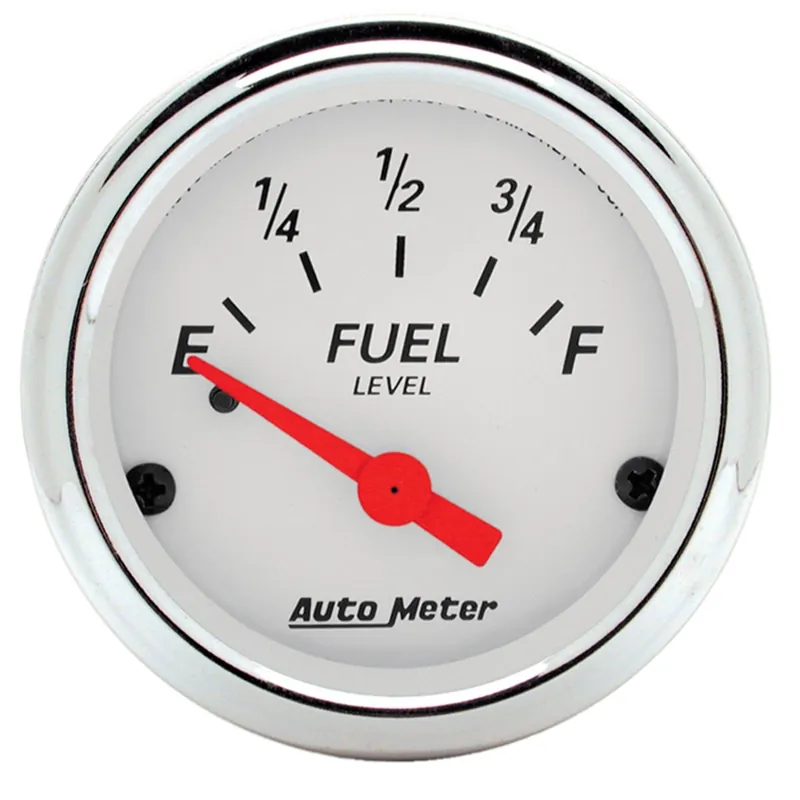

One Of The Most Necessary Gauges In A Dashboard, Autometer Makes It Easy By Offering 5 Different Resistance Range Configuration To Match Your Existing Fuel Sending Unit. Available In 0-90 Ohm (Gm Mid 60S To Mid 90S), 0-30 Ohm (Early Gm), 73-10 Ohm (Pre 90S Ford And Chrysler), 16-158 Ohm (Later Model Fords) And 240-33 Ohm (Aftermarket Senders Such As The Autometer 3262). Our Patented Air Core Meter Movement Receives Extra Dampening To Help Combat The Effects Fuel Slosh In Non-Baffled Tanks.
Features:
- 12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system
- Autometers Race Proven Air-Core Electric Instruments Provide Quick And Accurate Readings
- Gauge kit includes bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
- Traditional incandescent lighting illuminates around the perimeter of the dial
- Works with most 1965 to 1997 Chevrolet/GM senders
Specification
- Part Type: Fuel Level Gauge
- Bezel Color: Chrome
- Dial Color: White
- Gauge Type: Fuel Level
- Light Source: Increscent
- Lighting Color: White Increscent
- Pointer Color: Fluorescent Red
- Gauge Movement Type: Electric Air-Core
- Gauge Diameter (in): 2-15/64
- Range: 0 Empty / 90 Full
