Description
Product information
| Weight | 15.4 lbs |
|---|---|
| Dimensions | 10.8 × 9.5 × 4.1 in |
| Beam Style |
H Beam |
| Rod Length |
6.605 in |
| Bushed / Press Fit Wrist Pin |
Bushed |
| Small End Bore Diameter |
1.040 in |
| Small End Width |
1.244 in |
| Rod Journal Diameter |
2.499 in |
| Large End Bore Diameter |
2.6526 in |
| Large End Width |
0.994 in |
| Fastener Style |
Cap Screw |
| Fastener Manufacturer |
ARP |
| Fastener Product Line |
8740 |
| Fastener Diameter |
7/16 in |
| Fastener Head Style |
12 Point |
| Fastener Alloy |
8740 |
| Fastener Material |
Chromoly |
| Weight Matched |
Yes |
| Approximate Weight |
835g |
| Material Processing |
Shot-Peened |
| Forged |
Yes |
| Alloy |
4340.0 |
| Material |
Steel |
| Color |
Natural |
| Finish |
Natural |
| Quantity |
Set of 8 |
| UPC Code |
793348049007 |
| Brand |
EAGLE |
| Type |
Connecting Rods |
| Condition |
New |
| Manufacturer Part Number (MPN) |
CRS6605F3D |

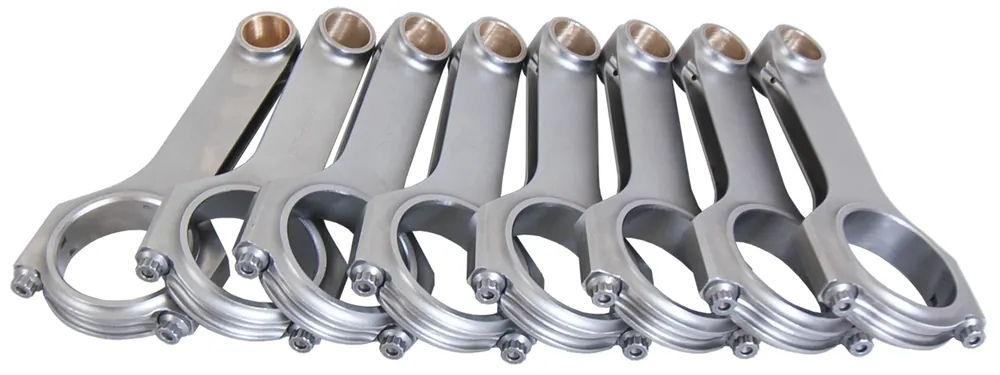

Description Connecting Rod – H Beam – 6.605 in Long – Bushed – 7/16 in Cap Screws – 8740 Bolt – Forged – Steel – Big Block Ford – Set of 8 Features
