Description

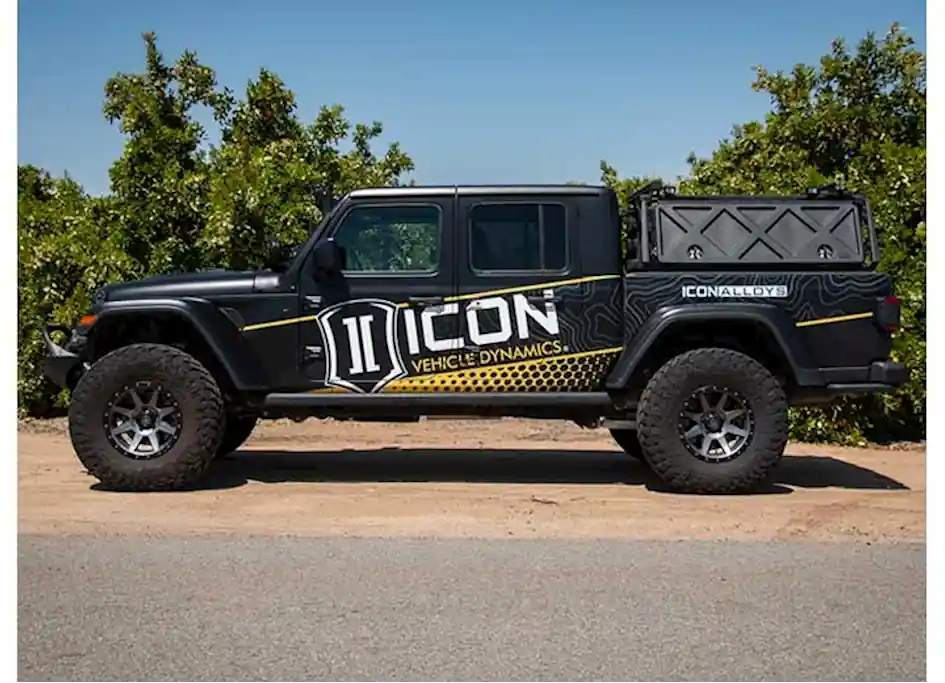

The Stage 3 ICON 2.5ö Suspension System for the Jeep Gladiator is the ideal setup for significantly improving on-road ride quality for the daily driven application that will see occasional moderate off-road use. This complete suspension system features 2.0 Aluminum Series shocks, 2.5ö lift dual-rate front coil springs, a tubular steel fixed front lower link kit, billet front sway bar links, a triple-rate rear coil spring kit, a rear sway bar relocation kit, and all necessary hardware for install. This system provides an increase of over 30% front and 20% rear wheel travel and was designed around the use of a 35ö tire. For those looking to run a 37ö tire this can be achieved with the ICON Jeep JT Bump Stop Spacer Kit (Part #22071).
- 100% bolt-on system makes for an easy install
- 2.0 Aluminum Series shocks with vehicle specific valving
- 2.5″ lift height
- 33% front, 23% rear increase in wheel travel
- Adjustable, billet aluminum front sway bar links
- Dual rate front coil springs with lifetime guarantee against sagging/breakage
- Fits 35″ tires (37″ with extended bump stop spacer kit)
- Front lower links included for caster angle correction and improved front end articualtion
- ICON 1K tested under rigorous off-road conditions to validate tune, performance, strength, and durability
- Improves on and off-road ride quality over stock
- Triple rate rear coil springs with ICON-engineered droop, ride, and overload rates
- OEM Wheels & Tires Fitment: Yes
- Ships In Multiple Boxes
- APPLICATION NOTE #127: Will Not Fit Gladiator Mojave Trim
- APPLICATION NOTE #150: Shocks Are Fully Serviceable
- APPLICATION NOTE #30: An Adjustable Track Bar May Be Needed To Realign The Axle From Left To Right, Or To Add Additional Strength
- Recommended Aftermarket Tires: 35″ x 12.50″ (37″ x 12.50″ with optional bump stop spacer kit PN: 22071)
- Recommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 4.5” Backspace / -6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys – 18×9″ w/ 4.5” Backspace / -12mm Offset
- TECH NOTE: Diesel models will net approx. 1.75″ of front lift over stock due to their heavier weight.
- TECH NOTE: ICON’s advertised lift heights are based around a typical Jeep JT build which usually includes added weight of accessories such as heavier front bumper/winch. Lift heights may be higher than advertised if installed on a stock weighted vehicle.
