Description
Product information
| Weight | 4.1 lbs |
|---|---|
| Dimensions | 12.4 × 3.4 × 3 in |
| Material |
Steel |
| Quantity |
Set of 16 |
| Spring Style |
Standard |
| Spring Quantity |
Dual Spring |
| Damper |
Yes |
| Spring Rate |
330 lb/in |
| Coil Bind Height |
1.12 in |
| Installed Height |
1.812 in |
| Outside Diameter Of Outer Spring |
1.43 in |
| Outside Diameter Of Inner Spring |
1 in |
| Inside Diameter Of Outer Spring |
1.07 in |
| Inside Diameter Of Inner Spring |
0.73 in |
| Maximum Valve Lift |
0.55 in |
| Seat Load (Lbs) |
135 lbs |
| Seat Load At (In) |
1.812 in |
| Open Load (Lbs) |
315 lbs |
| Open Load At (In) |
1.26 in |
| Alloy |
Chrome Silicone Wire |
| Brand |
ISKY CAMS |
| Condition |
New |
| Type |
Valve Springs |
| Manufacturer Part Number |
6105 |

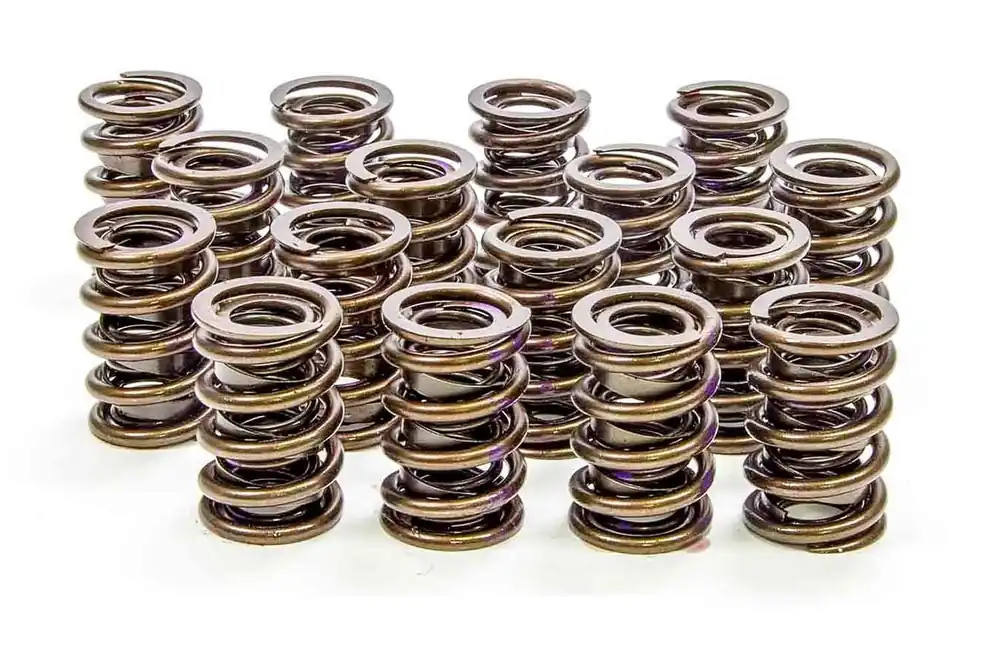

Description Valve Spring – Dual Spring / Damper – 330 lb/in Spring Rate – 1.120 in Coil Bind – 1.430 in OD – Set of 16 Features
