Description

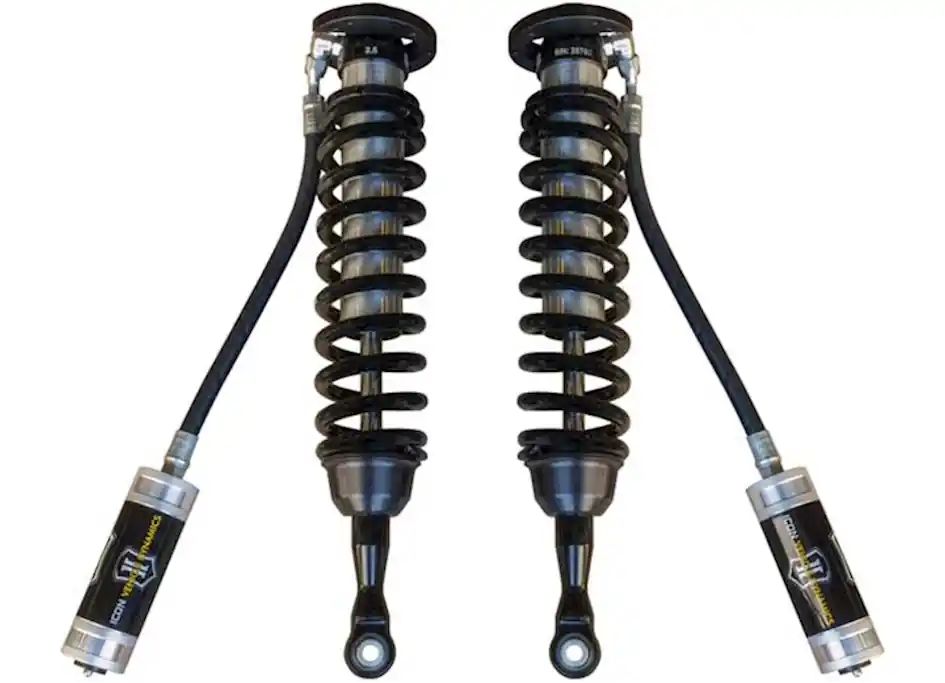

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2007-2021 Toyota Tundra and 2008-2022 Toyota Sequoia. These adjustable coilovers allow up 1-3 of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICONs Vehicle-specific shock length and valving, their large 2.5 shock body with increased piston surface area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tundra or Sequoia.
- 250 PSI nitrogen-charged internal reservoir
- 5/8″ PTFE-lined spherical bearing
- Adjustable ride height from 1″ – 3″ of lift over stock
- Billet aluminum upper mount
- Chrome-silicon spring
- Completely re-buildable
- Corrosion resistant CAD plated shock bodies with 7/8″ induction hardened, chrome plated shafts
- External Reservoir Ensures Maximum Cooling
- Hose Length Optimized for Increased Fluid Transfer
- Kit also Includes Reservoir Mounting Brackets
- Mounting Bracket Orients Reservoir for Optimum Tire Clearance
- OEM Wheels & Tires Fitment: Yes
- APPLICATION NOTE #110: Trimming required for recommended tire size
- APPLICATION NOTE #111: Bump stop spacer kit available that can be installed to increase threads showing beyond max recommendation.
- APPLICATION NOTE #24: Factory UCA’s will not align properly past 2.5” of lift. Above 2.5” of lift an aftermarket UCA is recommended.
- APPLICATION NOTE #55: Shocks are fully serviceable. Coilover heights indicated are for a stock equipped vehicle
- Recommended Aftermarket Tires: 35″ x 12.50″ (Larger tires may fit but fender trimming and modifications will be required.)
- Recommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 5.75” Backspace / 25mm Offset
- Recommended Aftermarket Wheels: ICON Alloys – 18×9″ w/ 6.00” Backspace / 25mm Offset
- Recommended Aftermarket Wheels: ICON Alloys – 20×9″ w/ 5.625” Backspace / 16mm Offset
