Description

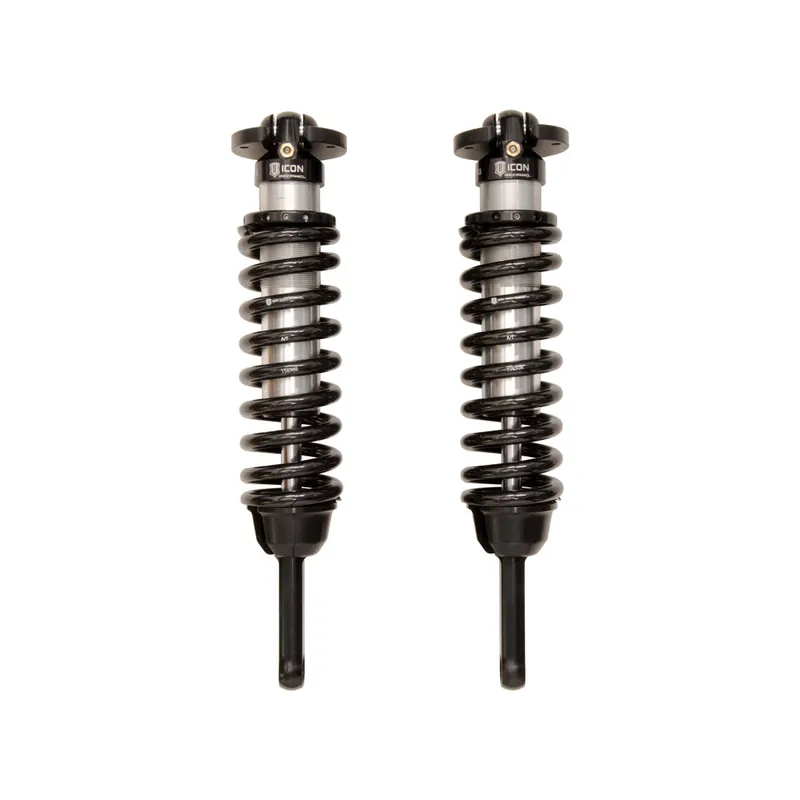

ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 2005-2023 Toyota Tacoma. These adjustable coilovers allow up to 0-3.5″ of lift height adjustability on 2005-2015 models or 0-2.75″ of lift height adjustability on 2016-2023 models, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5″ shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tacoma.
FEATURES
- Increased wheel travel and improved ride quality over stock
- Vehicle specific tuned for superior shock damping and control
- Height-adjustable coilovers offer 0-3.5″ or 0-2.75″ of lift height adjustment depending on year model
- ICON engineered coil springs
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated shock bodies with 7/8″ diameter shafts
- FK rod end bearings for extended longevity and minimal deflection
- Fully rebuildable and re-tunable
SPECIFICATIONS
- Adjustable Damping: NO
- Adjustable Height: yes
- Body Diameter (IN): 2.5
- Boot Included: No
- Coil Over Springs Included: Yes
- Damping Type: Oil
- Gas Charged: yes
- Grade Type: Performance
- Lower Mount Type: Eyelet
- Material: Aluminum
- OEM Wheels & Tires Fitment: Yes
- Remote Reservoir: NO
- Service Parts: 252010 – 2.5 IFP REBUILD KIT
- Service Parts: 252002 – UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
- Service Parts: 254100G – 1 GALLON ICON PERFORMANCE SHOCK OIL
- Service Parts: 257301 – 7/8 SHAFT 10.25 OAL, 6.00 TRAVEL
- Service Parts: 252003 – SEAL INSTALL TOOL 2.5/3.0
- Service Parts: 611067 – TACOMA/FJ/4RNR LOWER CO BRG/SPCR KIT
- Service Parts: 252004 – ECONOMY NEEDLE CHARGING TOOL
- Service Parts: 611019 – COILOVER HARDWARE KIT PAIR
- Service Parts: 252001 – 2.5 FIXED SPANNER WRENCH
- Shaft Diameter (IN): 0.875
- Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
- Shock Absorber Rod End Measuring Point: Center of Eylet
- Spring Color: Black
- Spring Material: Steel
- Spring Rate (PPI): 650
- Upper Mount Type: Mounting Plate
TECH NOTES
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys – 17×8.5 with 4.75″ Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys – 18×9 with 5.00″ Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys – 20×9 with 5.00″ Backspace / 0mm Offset
- Recommended Aftermarket Tires: 33″ x 11.50″ (Larger tires may fit but fender trimming and modifications will be required.)
- 2017-2023 Tacoma TRD Pro models will have front lift height range of 0-1.25″ over stock
