Description

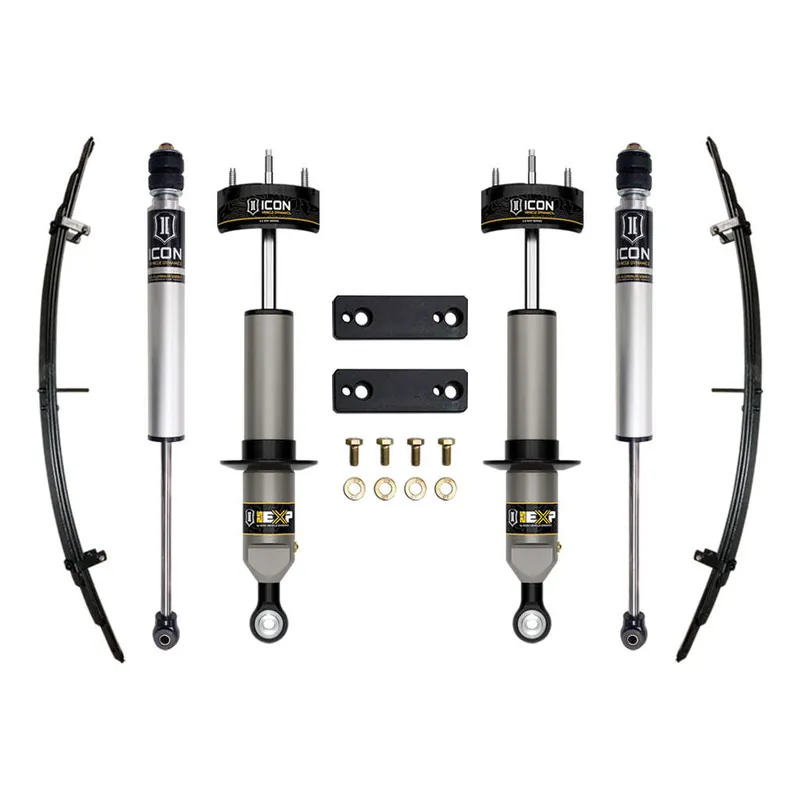

The ICON Vehicle Dynamics Stage 2 EXP suspension system for the 2005-2022 Toyota Tacoma provides improved on- and off-road performance as well as front and rear-end lift and fitment of up to 33″ tires. This system features the innovative new 2.5 EXP series coilover shocks, sway bar relocation brackets, rear add-a-leaf, and our proven 2.0 Aluminum Series nitrogen charged monotube shocks for the rear.
- Vehicle specific design for 2005-2022 Toyota Tacoma
- 2.5 EXP Series front shocks with internal reservoirs utilize factory coil and coil hardware
- Adjustable front ride heights from 0-2″ of front lift over stock with the use of snap ring
- Included sway bar relocation brackets reduce ensure sway bar clearance from EXP coilovers
- Allows for full wheel travel without overstressing OE components
- Rear Add-a-Leaf softens spring rate for improved ride quality while providing 1.5″ of rear lift
- 2.0 Aluminum Series rear shocks provide balanced tune with coilovers and increased performance
- All ICON shock absorbers are fully rebuildable and re-tunable
- OEM Wheels & Tires Fitment: Yes
- APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. LIFT HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE.
- APPLICATION NOTE #110: TRIMMING REQUIRED FOR RECOMMENDED TIRE SIZE
- APPLICATION NOTE #144: NOT COMPATIBLE WITH TRD PRO
- TECH NOTE: Not compatible with 2005-2015 rear wheel drive Tacomas with 5 wheel lug studs
- TECH NOTE: Not compatible with 2021-2022 Tacoma Trail
