Description
The Air Lift ALP4 Air Management System (27485) represents the next evolution in air suspension control, combining advanced hardware, intelligent software, and a refined user interface into a compact, all-in-one solution. This pressure-based system features a billet aluminum manifold that integrates the ECU, solenoids, and pressure sensors internally—delivering cleaner installs, fewer failure points, and a show-ready appearance.
At the center of the system is a 5-inch full-color touchscreen controller housed in anodized aluminum and equipped with four tactile physical buttons. Users gain instant access to presets, 4-corner manual control, axle adjustments, full air-out, and other customizable functions. With mobile app integration, ALP4 allows you to monitor and fine-tune your air suspension setup from virtually anywhere.
This configuration includes 3/8-inch DOT air line, making it ideal for higher airflow applications while remaining fully compatible with threaded 1/4-inch FNPT manifold ports. The ALP4 is also upgradeable to height-based control using Air Lift’s Height Upgrade Kit and integrates seamlessly with optional tank and compressor kits (sold separately).
Key Features & Benefits
- Pressure-based air management system with optional upgrade to height-based control
- Compact all-in-one billet aluminum manifold with ECU, solenoids, and pressure sensors built in
- Threaded 1/4” FNPT manifold ports compatible with included or aftermarket fittings
- Anodized black manifold with LED-lit top cover and rotatable logo plate
- 5-inch full-color touchscreen controller with anodized aluminum housing
- Four physical buttons for quick access to presets and key functions
- Auto-dimming ambient light sensor
- Adjustable LED colors for manifold cover, controller backlight, and buttons
- Plug-and-play harness requiring only power, ground, and keyed ignition
- Drop-in upgrade compatibility for existing Air Lift 3P and 3H systems
- Free mobile app with improved connectivity and intuitive interface
- Built-in diagnostics with clear system messages
- Compressor performance testing and health tracking
- Adjustable pulse rate and preset maintain sensitivity
- Valet Mode with customizable lockout settings
- Show Mode for system operation with vehicle off (one ignition cycle)
- Standby Mode for wireless access with minimal power draw
- Seamless integration with optional tank and compressor kits (not included)

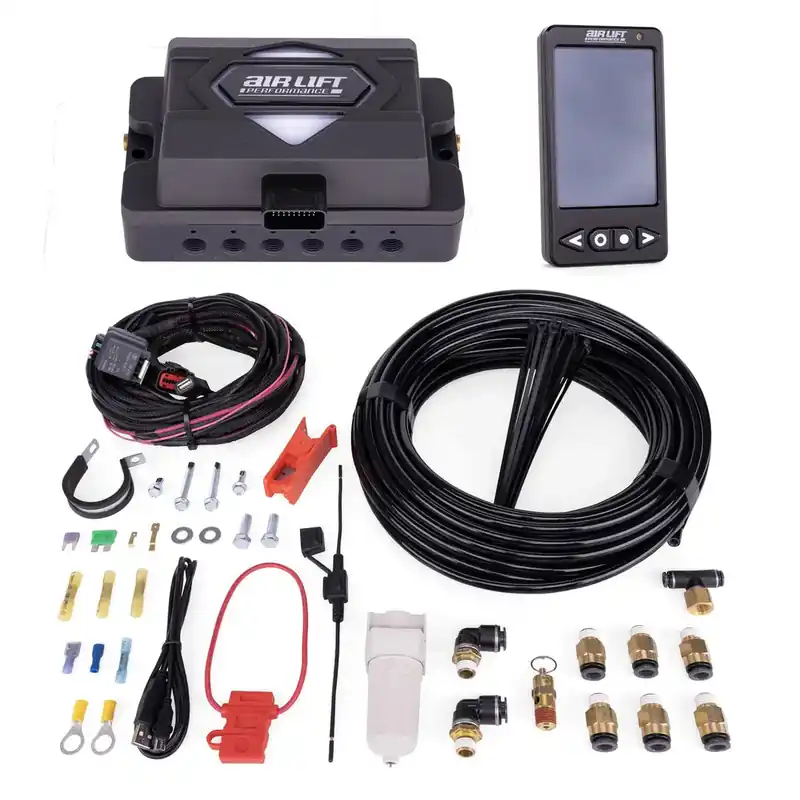

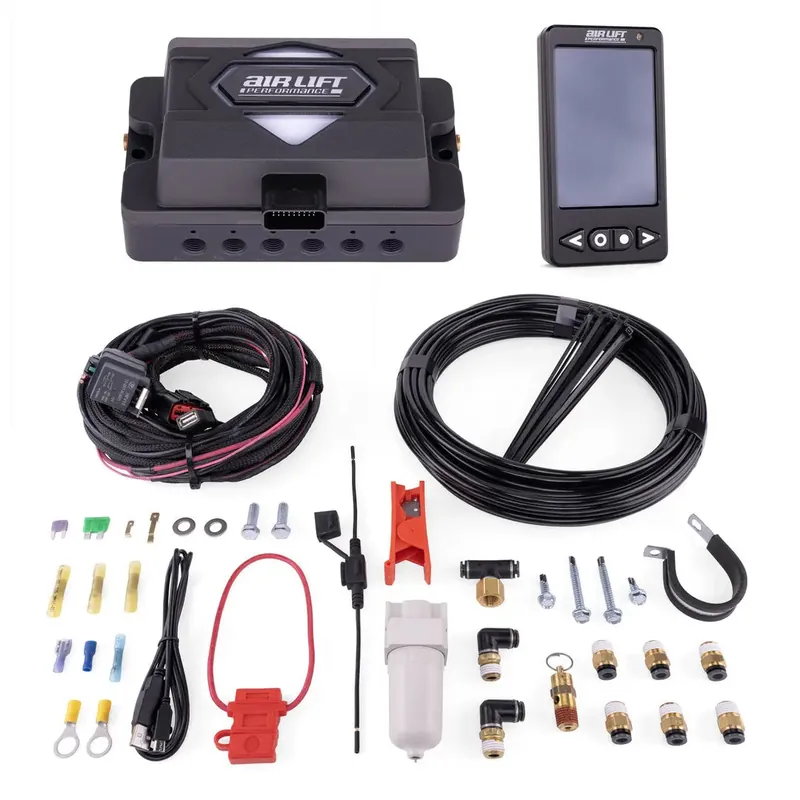

Kit Includes
- Threaded port 1/4” FNPT manifold
- Full-color touchscreen LCD controller with physical buttons
- Main wiring harness
- USB-A to USB-C controller cable
- Manifold mounting hardware
- Electrical hardware
- (6) 1/4” MNPT x 3/8” PTC fittings
- (1) SMC water trap with manual drain and mounting strap
- (1) Air line cutter
- (60 ft) 3/8” DOT-approved air line
Fitment
-
Universal fit
-
Compatible with Air Lift air suspension systems
-
Works with most aftermarket air spring setups
-
Upgradeable to height-based control with optional Height Upgrade Kit
-
Tank and compressor not included
Specifications
-
Part Number: 27485
-
Series: ALP4 Air Management
-
Control Type: Pressure-based
-
Air Line Size: 3/8 in
-
Manifold Type: Threaded port 1/4” FNPT
-
Material: Anodized billet aluminum
-
Tank Included: No
-
Compressor Included: No
